JM(JGY) E-Cu луженый кабельный и проводной наконечник
Описание:
Этот трубчатый наконечник предназначен для подсоединения кабеля.
Изготовлен из луженой меди (методом электролиза).
Изготавливается со смотровым отверстием и раструбом.
Этот наконечник соответствует требованиям стандарта NFC 20-130.

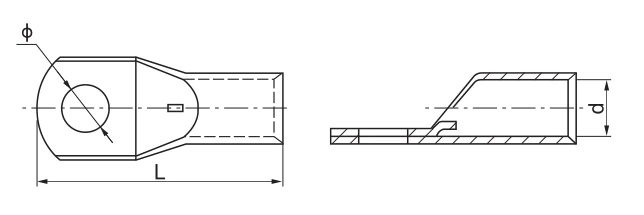

| Тип | Размеры (мм) | | Л | г | Ф | | JM(JGY) 6-5 | 25 | 3.7 | 5.2 | | JM(JGY) 6-6 | 25 | 3.7 | 6.5 | | JM(JGY) 6-8 | 25 | 3.7 | 8.4 | | JM(JGY) 10-5 | 26 | 4.5 | 5.3 | | JM(JGY) 10-6 | 26 | 4.5 | 6.5 | | JM(JGY) 10-8 | 26 | 4.5 | 8.4 | | JM(JGY) 10-10 | 28 | 4.5 | 10.3 | | JM(JGY) 16-6 | 28.5 | 5.7 | 6.5 | | JM(JGY) 16-8 | 30.5 | 5.7 | 8.4 | | JM(JGY) 16-10 | 31 | 5.7 | 10.5 | | JM(JGY) 25-6 | 35 | 5.7 | 10.5 | | JM(JGY) 25-8 | 35 | 7.2 | 8.4 | | JM(JGY) 25-10 | 35 | 7.2 | 10.5 | | JM(JGY) 35-6 | 37,5 | 8.5 | 6.5 | | JM(JGY) 35-8 | 38 | 8.5 | 8.5 | | JM(JGY) 35-10 | 39 | 8.5 | 10.5 | | JM(JGY) 35-12 | 39 | 8.5 | 13 | | JM(JGY) 50-6 | 43,5 | 9.8 | 6.5 | | JM(JGY) 50-8 | 45 | 9.8 | 8.5 | | JM(JGY) 50-10 | 45 | 9.8 | 10.5 | | JM(JGY) 50-12 | 45 | 9.8 | 13 | | JM(JGY) 50-14 | 45 | 9.8 | 14.5 | | JM(JGY) 70-8 | 50 | 11.5 | 8.5 | | JM(JGY) 70-10 | 51,5 | 11.5 | 10.5 | | JM(JGY) 70-12 | 51,5 | 11.5 | 13 | | JM(JGY) 95-8 | 58.5 | 13.7 | 8.5 | | JM(JGY) 95-10 | 58.5 | 13.7 | 10.5 | | JM(JGY) 95-12 | 58.5 | 13.7 | 13 | | JM(JGY) 95-14 | 59 | 13.7 | 15 | | JM(JGY) 120-10 | 63,5 | 15 | 10.5 | | JM(JGY) 120-12 | 65 | 15 | 13 | | JM(JGY) 120-14 | 65 | 15 | 14.7 | | JM(JGY) 120-16 | 66.5 | 15 | 17 | | JM(JGY) 150-10 | 73 | 16.7 | 10.5 | | JM(JGY) 150-12 | 73 | 16.7 | 13 | | JM(JGY) 150-14 | 73 | 16.7 | 14.7 | | JM(JGY) 150-16 | 73 | 16.7 | 17 | | JM(JGY) 185-10 | 80 | 19.2 | 10.5 | | JM(JGY) 185-12 | 80 | 19.2 | 13 | | JM(JGY) 185-14 | 80 | 19.2 | 14.7 | | JM(JGY) 185-16 | 80 | 19.2 | 17 | | JM(JGY) 240-12 | 92.5 | 21 | 13 | | JM(JGY) 240-14 | 92.5 | 21 | 14.7 | | JM(JGY) 240-16 | 92.5 | 21 | 17 | | JM(JGY) 240-20 | 92.5 | 21 | 21 | | JM(JGY) 300-12 | 102 | 24 | 13 | | JM(JGY) 300-16 | 102 | 24 | 17 | | JM(JGY) 300-20 | 102 | 24 | 21 | | JM(JGY) 400-16 | 114 | 27 | 17 | | JM(JGY) 400-20 | 116 | 27 | 21 | | JM(JGY) 500*16 | 127 | 30 | 17 | | JM(JGY) 500-20 | 127 | 30 | 21 | | JM(JGY) 630-16 | 140 | 35 | 17 | | JM(JGY) 630-20 | 140 | 35 | 21 | | JM(JGY) 630-22 | 140 | 35 | 23 | | JM(JGY) 800-22 | 170 | 39 | 23 | | JM(JGY) 1000-22 | 200 | 44 | 23 |
|
